CBIC

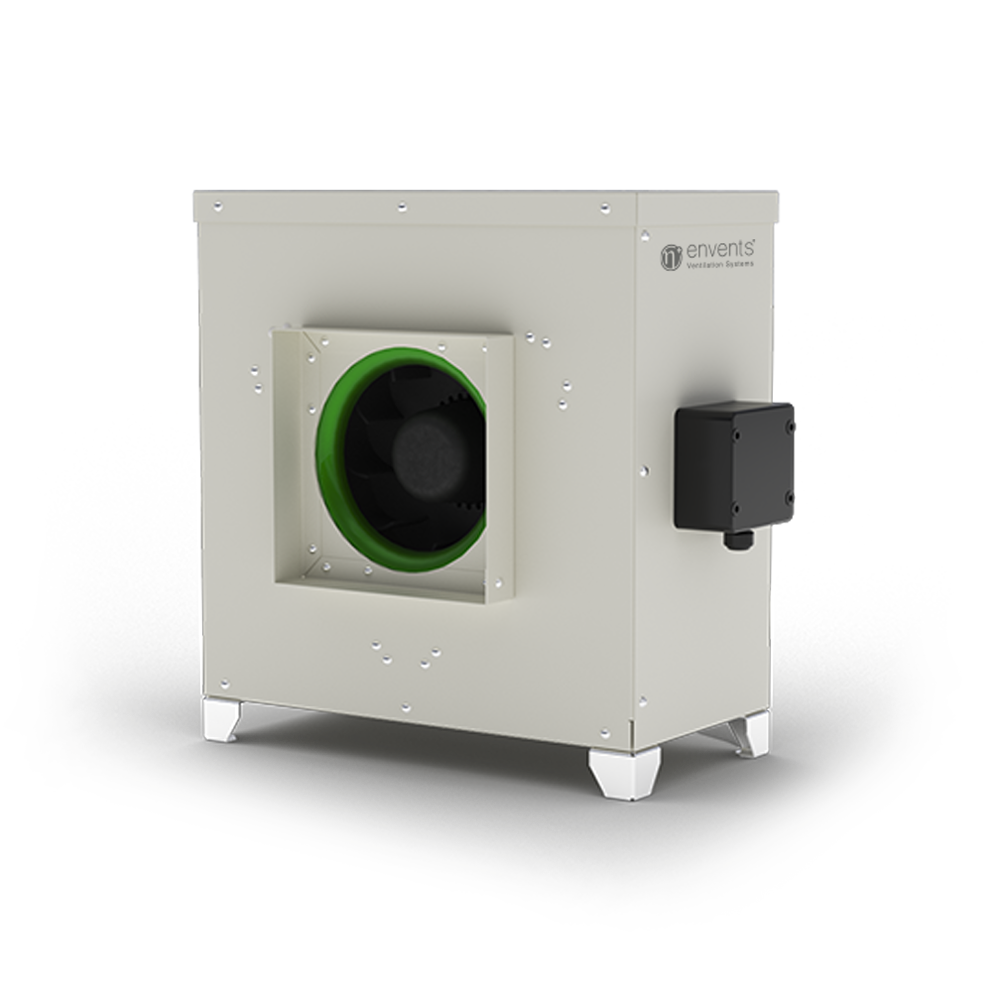

Low SPL Inline Cabinet Fan
Suitable for outdoor application 50ºC Ambient
Weatherproof PPGI Cabinet for high MTBF Life
Inbuilt 1st degree of isolation
Option available with G4 & F7 filters
The Low SPL Inline Fan is meticulously designed to cater to the specific needs of low background noise & outdoor applications, making it ideal for environments such as villas and commercial spaces where noise levels need to be kept to a minimum.
Key Features of Inline Box Fan
- Design: Engineered to effectively handle low background noise applications.
- Overheat Protection: Equipped with a motor configured with thermal contact and auto-reset feature for added safety.
- Corrosion Resistance: Features a powder-coated casing for optimal indoor use, with an option for a weatherproof cabinet for outdoor installation
(Model CBIC). - Ease of Installation: Designed for user-friendly installation with a convenient mounting bracket.
- Vibration Control: Dynamically balanced according to ISO 1940 standards, ensuring smooth operation.
- Motor Protection: Rated IP44 (IP54 available upon request) for protection against dust and moisture.
Advantages of Inline Cabinet Fan
- Outdoor: Suitable for outdoor installation.
- Quiet Operation: Engineered to operate with minimal noise, maintaining a peaceful environment.
- Durable Construction: Constructed from high-grade materials, ensuring longevity and reliability.
- Energy Efficiency: Designed to deliver optimal performance while minimizing energy consumption.
- Versatile Applications: Suitable for a wide range of applications including villas, warehouses, and other commercial settings.
Application of Inline Cabinet Fan
The Low SPL Inline Fan is suitable for various applications including:
- Ventilation systems in villas and residential buildings.
- Air circulation in warehouses, factories, and industrial settings.
- Exhaust systems in commercial kitchens and restaurants.
- HVAC systems in offices, retail spaces, and other commercial establishments.
Specifications Cabinet Fan
Impeller: Non-overloading type backward curved impeller, available in metal (composite option available upon request).
Casing: Manufactured from high-grade pressed galvanized steel with black epoxy coating for long-term surface protection.
Bearing: Maintenance-free ball bearing with a design L10 life > 20,000 hours at 40°C ambient temperature.
Motor: External rotor motor with a totally enclosed permanent split capacitor start & run configuration.
- 230V suitable for 50 and 60 Hz supply.
- Permanently sealed bearing for lifetime use.
- Thermal overload protection.
- Class F insulation.
- IP44 (IP54 available upon request) rating for protection against dust and moisture.
Accessories-Inline Cabinet Fan
Comes with standard mounting bracket and terminal box for easy installation.
Why Choose Inline Cabinet Fan-CBIC
Exceptional Performance: Delivers superior performance with minimal noise output, ensuring a comfortable environment.
Reliability: Built to withstand the rigors of continuous operation, offering long-lasting reliability.
Customization: Available with optional features and configurations to suit specific requirements.
Technical Support: Backed by our dedicated technical support team to assist with any queries or concerns.
